Black 4 Core PVC Insulated Copper Wire Xlpe Insulated PVC Sheathed Cable

Rated Voltage:

0.6/1kv

Number of cores:

1 core, 2 core, 3 core, 3+1 core, 3+2 core, 4 core, 4+1 core, 5 core

Cross Section Area of Conductor:

0.75mm2, 1mm2, 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm, 400mm2, 500mm, 630mm2, 800mm2, 1000mm2

PVC Insulated Electrcial Cable Application:

PVC insulated cables is characterized with high mechanical strength, strong resistance to environmental stress, excellent electrical properties, powerful resistance to chemical attack. In addition, the light and simple products are user-friendly.This product is suitable and designed for power transmission and distribution system of rated voltage 0.6/1kv.

PVC Insulated Electrcial Cable Service Performance:

1) Rated voltage: 0.6/1KV
2) Long-term working temperature: not be higher than 70°C
3) When laying the cable, the ambient temperature should not lower than 0°C.
4) Minimum bending radius:
Bending radius≥4D as cable overall diameter≤25mm


PVC Insulated Electrical Cable Types:

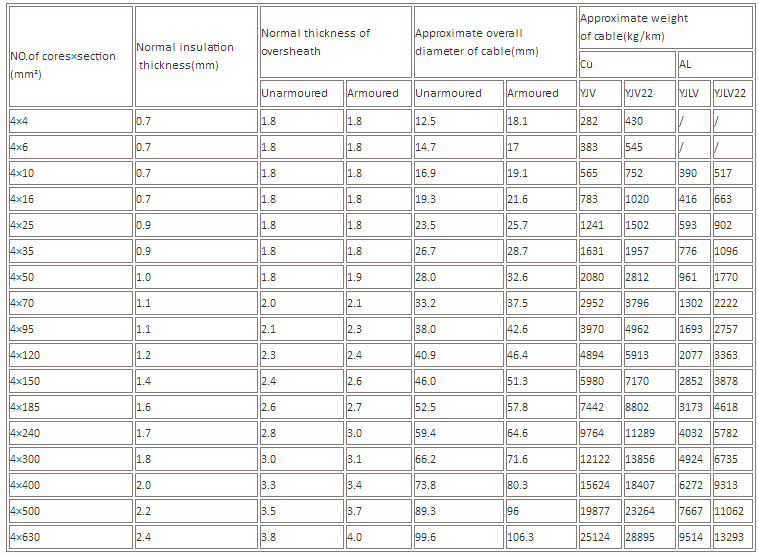

PVC Insulated Electrical Cable Technical Data:

Huanghe Cables founded in 1980s ,constantly awarded as national quality reliable factory from 1980-1990 restrued into as joint-stock in 1996 .

Awarded as china famous brand and AAA enterprise from 1996-2006 38 sales branches in henan province in 2012 .

Successiverly cooperated with china Raily way group ,Electrical power bureau from 2012-2015 with every years total annual sales 15000000USD.

Subsidiary of Huanghe Cabels Henan Interbath Cable Co.,Ltd founded in 2016 focusing on international markets .successiverly cooperated with BPDB,DPDC of Bangladesh ,BPC of Botswana ,Singapore grid and so on .

Huanghe Cables Group (Henan Interbath Cable ) always on the road to forwarding .

Going on ........
